GS-Z19
GS-Z19 is a new architectural outdoor projector lighting series.

Parameter

Optics

LED:19x20W RGBW LED (RGBL/TW) (48x0.5W RGBW + 48x0.5W UV LED strip optional)

Beam Angle:3.5°-28° (Beam Angle); 5°- 40°(Field Angle)

CRI:Ra≥70(Ra≥90 optional)

LED Lifespan:50,000h

Dimming:0-100% linear dimming

Electronics

Input Voltage:100-240V, 50-60Hz

Max. Power:300W

Software

Control:DMX/RDM

DMX Channel:16/24/104 chs

Sostware Upgrade:Upgrade Box

Settings / Addressing:Remote reset DMX address

Environment

Ta:-20 - 45℃

Physical

Housing:Die-casted aluminium

Dimension(L*W*H):290*346*402mm

Net Weight:9kg

Finish:Gray (RAL9006),Black (RAL9005)

Cooling:Built-in fan

Protection Rating:IP66

Mounting Method:Floor or ceiling

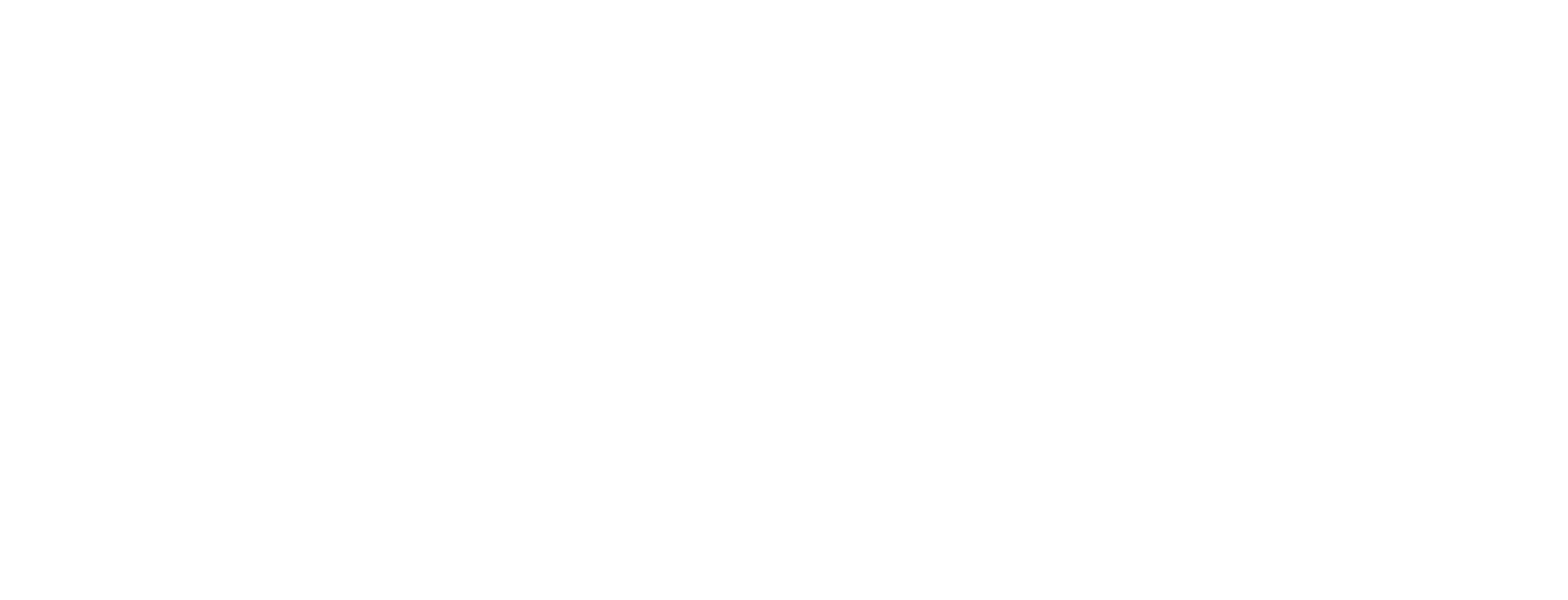

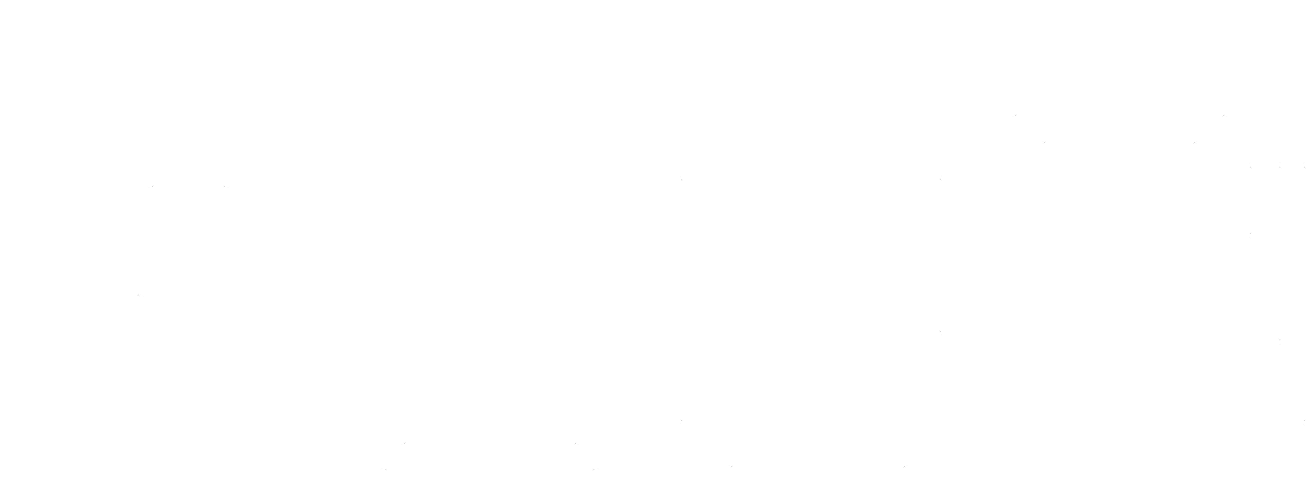

Product Dimension

/

Optics

×
